Description
Digga 4 in 1 Bucket
The Digga 4 in 1 bucket has an extensive range to suit most machines – including skid steers, mini loaders, and tractors. Ideal for grading, scraping, grappling, dozing dirt or material spreading, and most construction work.
- Standard Heavy Duty 20mm Floors
- 12mm and 16mm floors available on request
- Side curved sections for greater bucket opening width
- 1 piece heavy duty fully welded 6mm grill/hungry board
- Full range available from 880mm to high volume 2130mm
- High visibility design: Clear vision of bucket edges
- Optional reversible bolt-on cutting edges
- Optional chisel or tiger teeth with pin on design
- Grabbing teeth profiled on both front/rear overlap for greater grip of logs or other debris

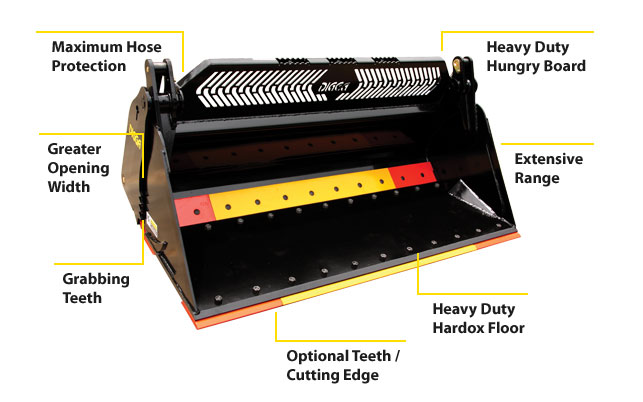

Features & Benefits
Digga 4 in 1 buckets come packed with really practical features. Hover your mouse over the features´ ‘plus’ symbol on the diagram below to reveal the respective benefits.
4 in 1 Bucket Specifications
| SPECIFICATION | STD | STD | STD | STD | STD | STD |
|---|---|---|---|---|---|---|
| Bucket Cutting Width | 880 mm | 900 mm | 1070 mm | 1100 mm | 1130 mm | 1225 mm |
| Weight | 147 kg | 150 kg | 162 kg | 166 kg | 172 kg | 186 kg |
| M3 Volume | 0.1 | 0.11 | 0.12 | .0125 | 0.127 | 0.14 |
| SPECIFICATION | STD | STD | STD | STD | STD | STD |
|---|---|---|---|---|---|---|
| Bucket Cutting Width | 1300 mm | 1450 mm | 1550 mm | 1600 mm | 1650 mm | 1680 mm |
| Weight | 195 kg | 330 kg | 345 kg | 352 kg | 360 kg | 370 kg |
| M3 Volume | 0.15 | 0.28 | 0.3 | 0.31 | 0.32 | 0.325 |
| SPECIFICATION | STD | HV | HV | HV | HV | HV |
|---|---|---|---|---|---|---|
| Bucket Cutting Width | 1727 mm | 1727 mm | 1800 mm | 1880 mm | 2000 mm | 2130 mm |
| Weight | 380 kg | 387 kg | 410 kg | 425 kg | 432 kg | 450 kg |
| M3 Volume | 0.33 | 0.38 | 0.4 | 0.42 | 0.46 | 0.5 |
